  • Place of Origin:CN
  • Number of Conductors:8
  • Brand Name:SMITON
  • Model Number:SM620
  • Product name:FTP Cat6 Lan Cable
  • Keywords:FTP Cat6 Lan Cable
  • Type:CAT6
  • Material:PVC
  • Core Number:4
  • Temperature range:60 degree
  • Voltage:80V
  • Insulation:PP
  • Color:Blue/ Grey
  • Packing:305m/box
Product Description

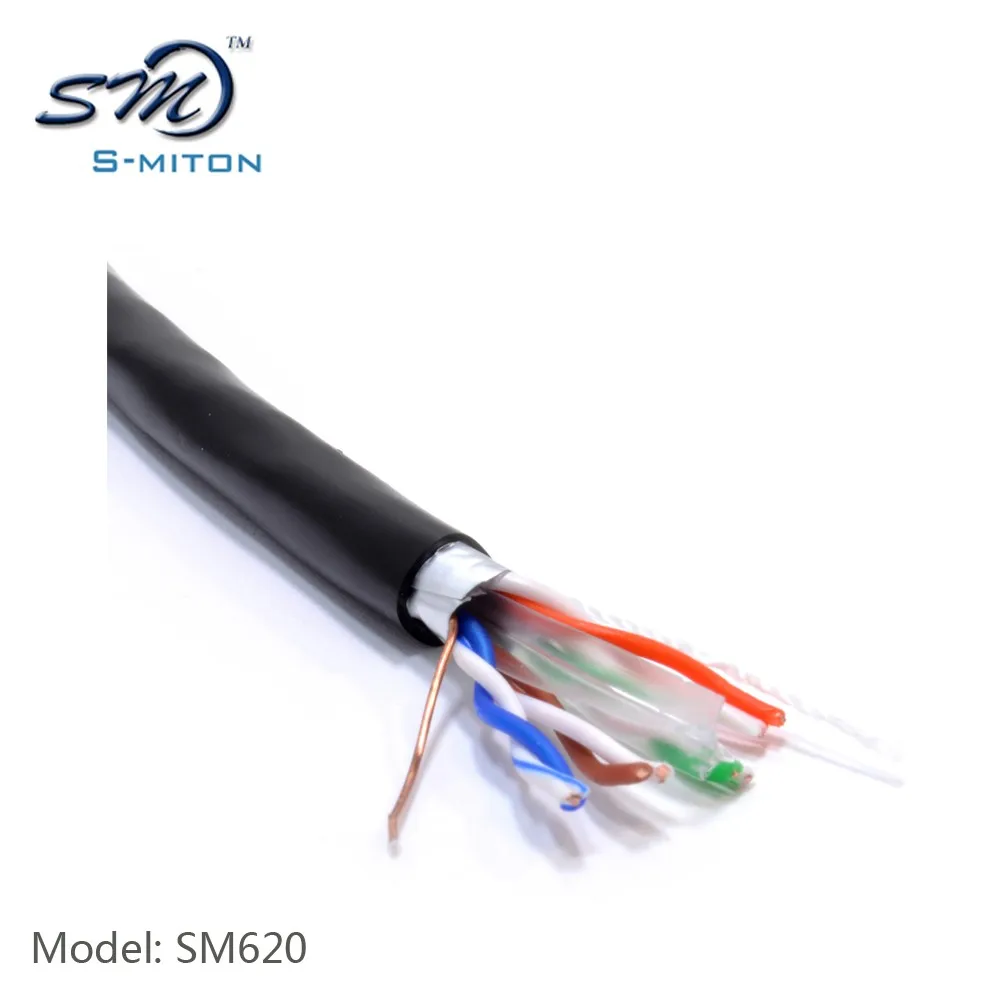

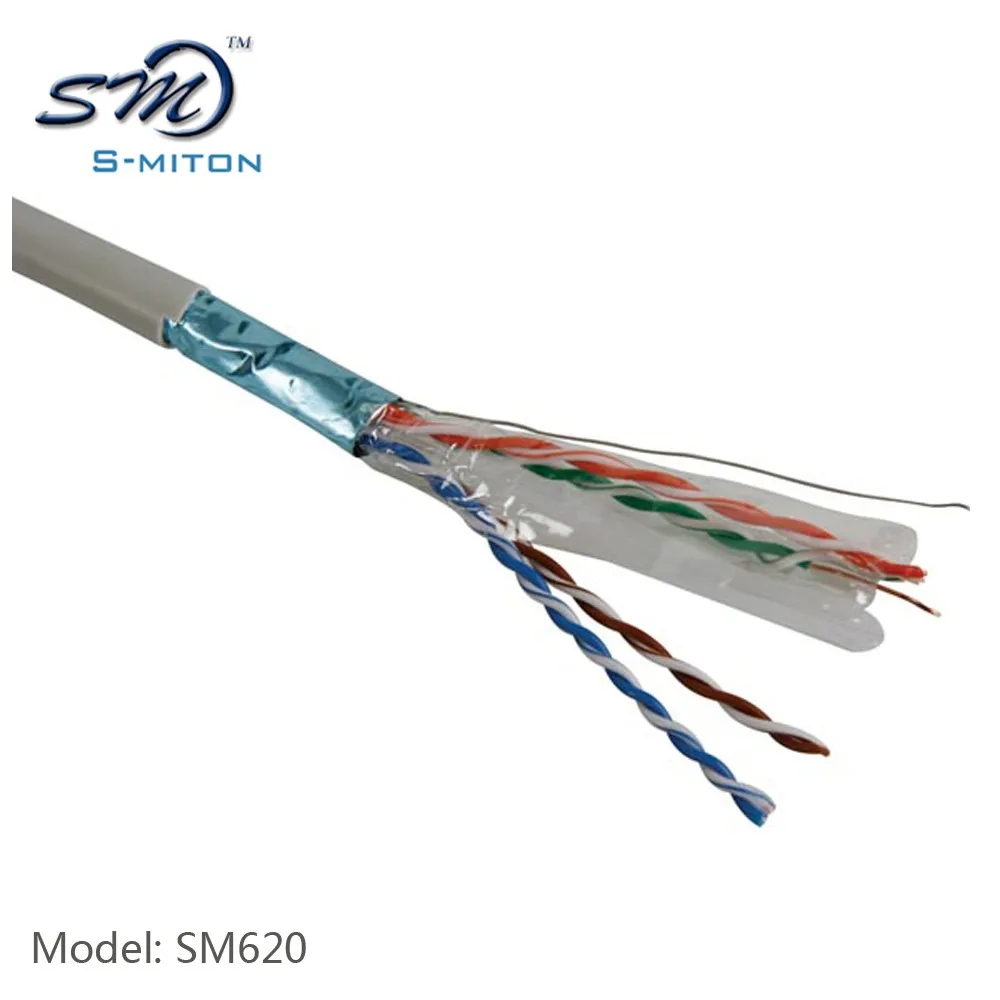

CAT6 FTP Cable

1. Resistance: (f=1-100MHZ)100±15%
2. Delay deviation: (max)40ns/100m
3. Rated transmission rate: (NVP):72%
4. Tensile resistance: (max)250N
5. Temperature range: -40°C~+70°C
6. Color Code:
Pair 1: Blue/ Blue+ White
Pair 2: Orange/ Orange+ White
Pair 3: Green/ Green+ White
Pair 4: Brown/ Brown+ White
( or as per customer's requirements )

Model
SM620
MOQ
3 Roll
Type
CAT6 FTP
Packing
305m/roll
Material
Copper / CCA
Sample
0.5m free
Color
Grey
For network communication

CAT6 Cable

1. Conductor Material: Copper/CCA
2. Conductor Dimension: 23AWG/0.511mm 24AWG /0.404 26AWG/28AWG
3. Insulation thickness: 0.18mm
4. The thickness of Jacket: 0.55mm
5. Outer Diameter: 5.4mm/5mm
6. Insulation: PE
7. Ripcord yes/no: Yes
8. Jacket: PVC (Polyvinyl-Chloride) or LSZH (Low Smoke Zero Halogen)
